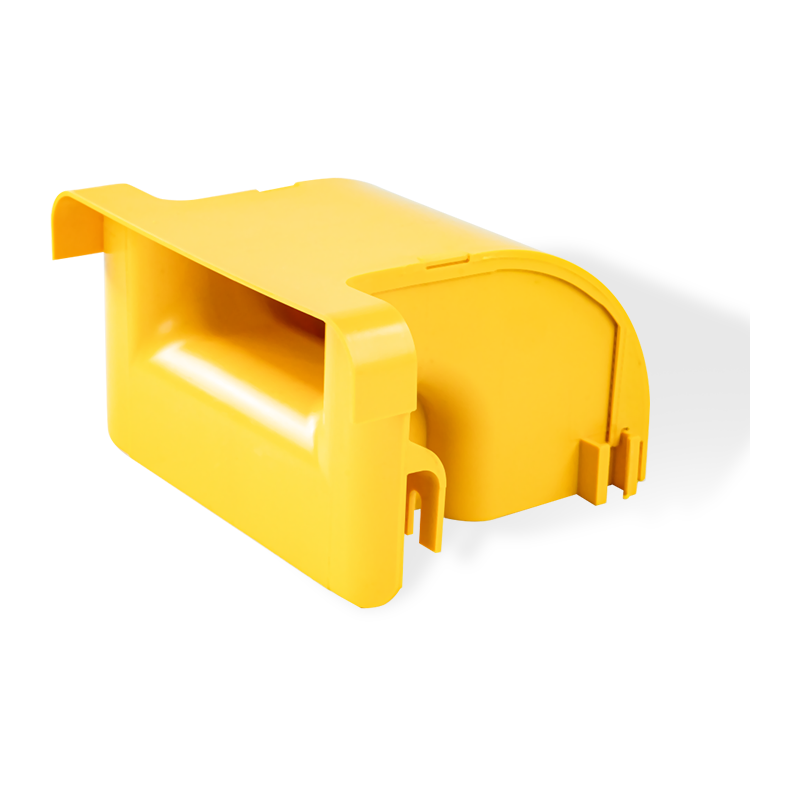

Fiber cable tray management drop

Inquiry
PREV：Fiber cable tray CF240 to CF120 horizontal teeNEXT：Fiber cable tray external riser 45 degrees
Product introduction

The fiber duct 130 outlet and port baffle (Fiber Cable Tray Management Drop) are made of flame-retardant ABS material, which is specially designed to provide a safe and convenient outlet solution for optical fiber lines. Its unique design and moderate outlet angle facilitate the access and extraction of optical fiber lines. At the same time, the port baffle can effectively prevent dust and debris from entering the duct and protect the optical fiber from damage. The outlet and port baffle are easy to install and highly compatible, and are suitable for various optical fiber duct systems. Its flame retardant performance meets the UL94 FV-0 standard, ensuring safety and stability in complex environments. The fiber duct 130 outlet and port baffle not only improve the flexibility of optical fiber management, but also ensure the efficiency and stability of data transmission. It is an indispensable and important accessory for optical fiber wiring in data centers.

Physical Properties
Type Fiber Cable Tray/Optic Cable Tray
Material Material flame-retardant PVC For Straight Section， flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Surface finishing/treatment

/

Dimension range

customizable is available

 Width 120/240/300/360
Side Rail Height 100
Length 2000/3000/Customized
Thickness/wire diameter
Max. Working Load
Accessories/related products
Product Features

1. Closed design, protect the fiber optic cables from damage.

2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance.

3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center.

4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.
Color Yellow(pantone 123c)
Enviroment demmand Indoor
Application Suitable for a wide range of applications, including fiber optic cable management, power cable management.
