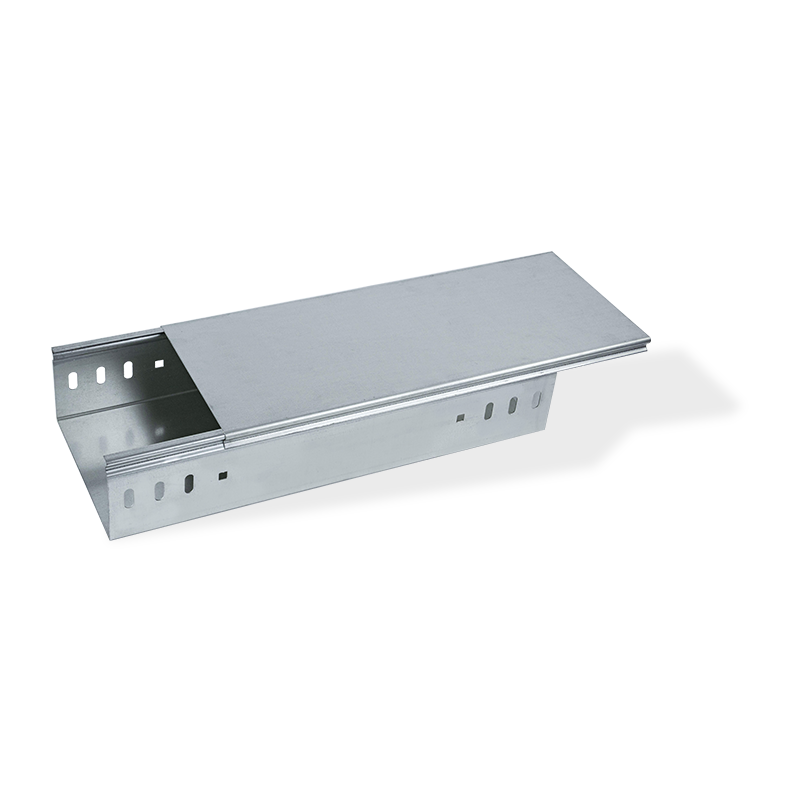

Galvabized steel cable trunking tray with cover

Inquiry

PREV：Molded trough bridge NEXT：No next article

Product introduction

Hot-dip galvanized steel-covered cable tray tray is designed for cable management in highly corrosive environments. High-quality steel is used as the main material, and the coating thickness exceeds 60um through advanced hot-dip galvanizing process, ensuring corrosion resistance and long service life of the product.

The tray structure is through type, with reasonable design and easy installation, which can flexibly adapt to various complex wiring needs. The fully enclosed design not only effectively shields and protects the control cables, but also greatly improves the overall aesthetics and safety of the cable tray.

In addition to hot-dip galvanizing surface treatment, we can also provide electro-galvanizing (≥12um), spraying (＞60um), powder coating and polishing and other surface treatment options to meet the different needs and preferences of customers.

The working load of the product varies according to the size, ensuring that it can withstand the required weight and pressure in various applications. Whether it is commercial buildings, industrial plants or other facilities, this product can provide a stable and reliable cable management solution.

Physical Properties

Type		Through type
Material	Material	Steel、 Aluminum、ss304、ss316L
Material	Surface finishing/treatment	Pre-galvanized 8um/ Electro zinc Plating（≥12um） Hot -dip galvanized（＞60um） Plastic-spayed（＞60um） Power coating Acid washing +polishing （option）
Dimension range customizable is available	Width	50/100/150/200/250/300mm
	Side Rail Height	25/50/75/100/150mm
	Length
	Thickness/wire diameter	0.8/1/1.2mm
	Max. Working Load	According To Size
Accessories/related products
Product Features		Fullv enclosed cable travs are effective in shielding control cables from interference and protecting cables in highly corrosive environments.
Color		Silver or others/According to customers
Enviroment demmand		Indoor&dry normal temperature light anti-corrosion&outside wet high temperature&heavy corrosion&dry normal temperature
Application		Oil gas、chemical、ships、building、infransture
Fix a price	Domestic price
	Export price
	MOQ
Peer reference	Peer name	Ningbo Weicheng
Peer reference	Peer pricing	40 - 99 meters $6.50 100 - 9999 meters $4.60 >= 10000 meters $2.50
