Cable Tray Coating Selection Guide 2024 | Corrosion Resistance & Cost Comparison

1. Define Environmental Exposure

a. Corrosive Environments (Chemical Plants, Offshore)

-Optimal Process: Hot-dip galvanizing (Zinc coating ≥85μm) or Duplex System (Galvanizing + Powder Coating).

- Key Metrics: Salt spray resistance ≥2000hrs (ASTM B117 salt spray test), suitable for ISO 12944 C5-M class environments.

b. Indoor/Dry Conditions (Data Centers, Offices)

- Cost-Effective Choice: Electrostatic powder coating (RAL color options, ≤$1.2/m²).

- Performance Check: Coating thickness ≥80μm, adhesion passes ISO 2409 cross-cut test.

-2. Performance & Cost Comparison Table

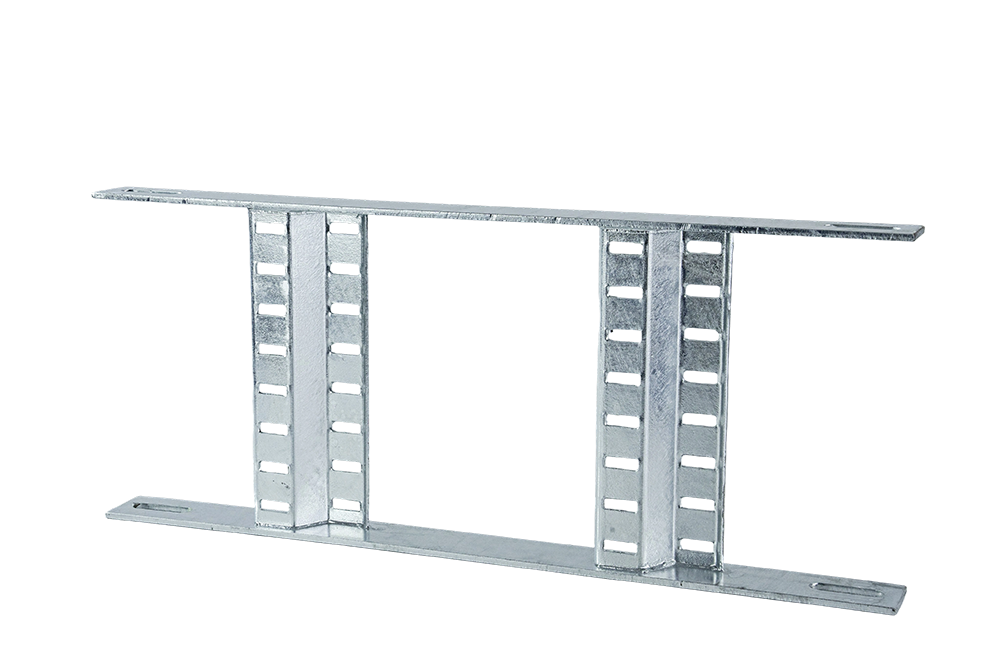

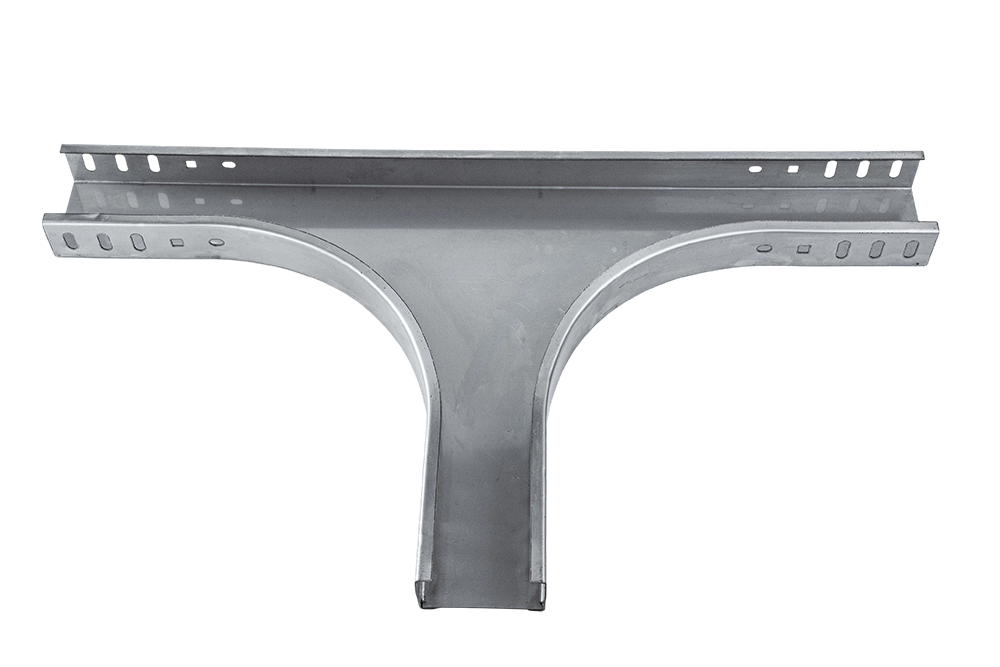

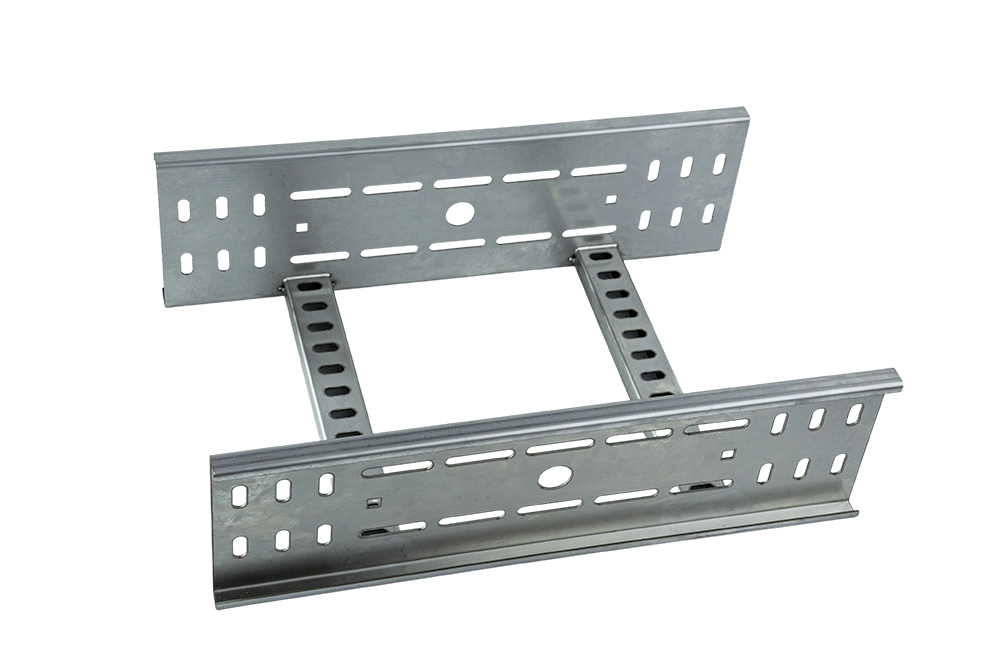

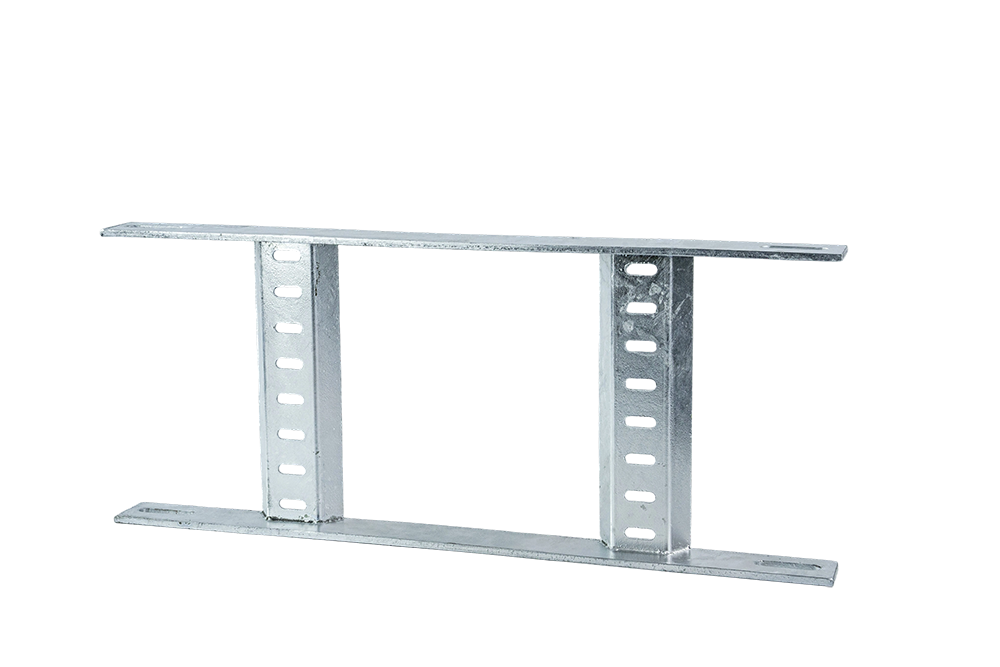

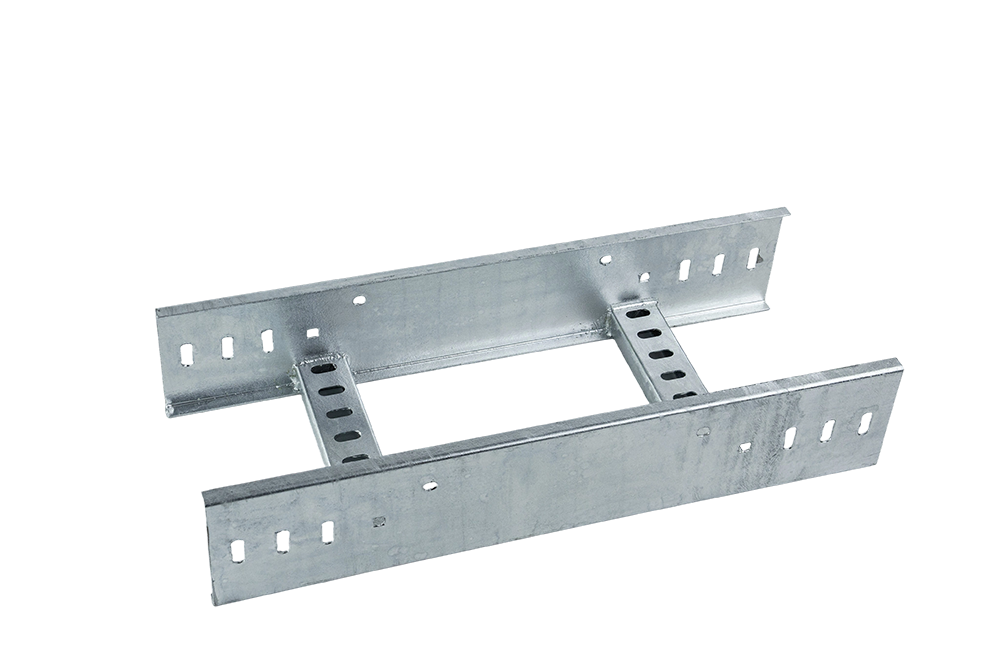

Hot-dip galvanizing cable tray

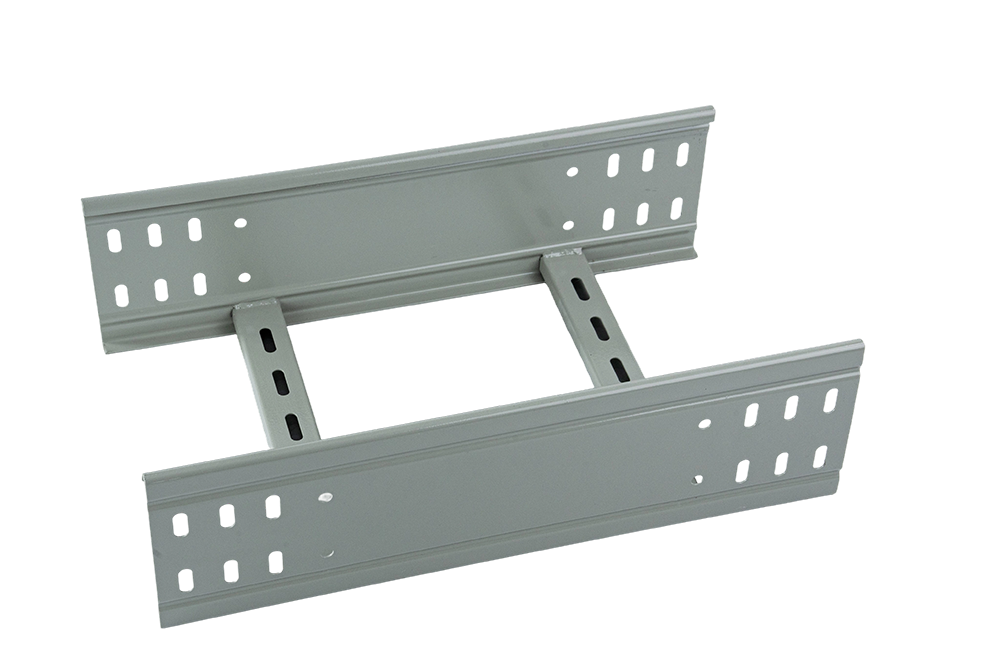

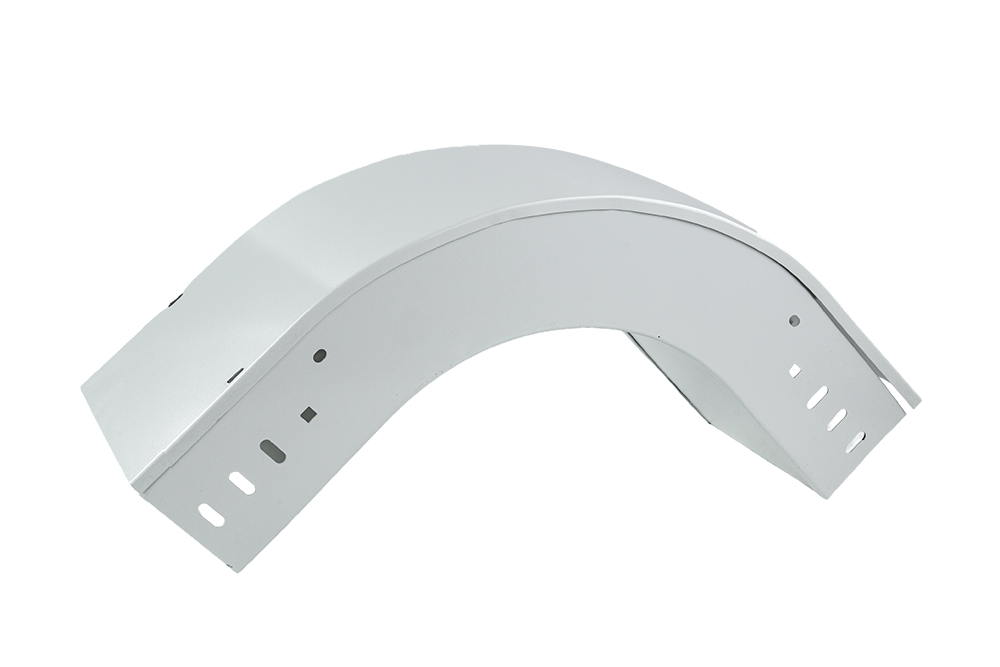

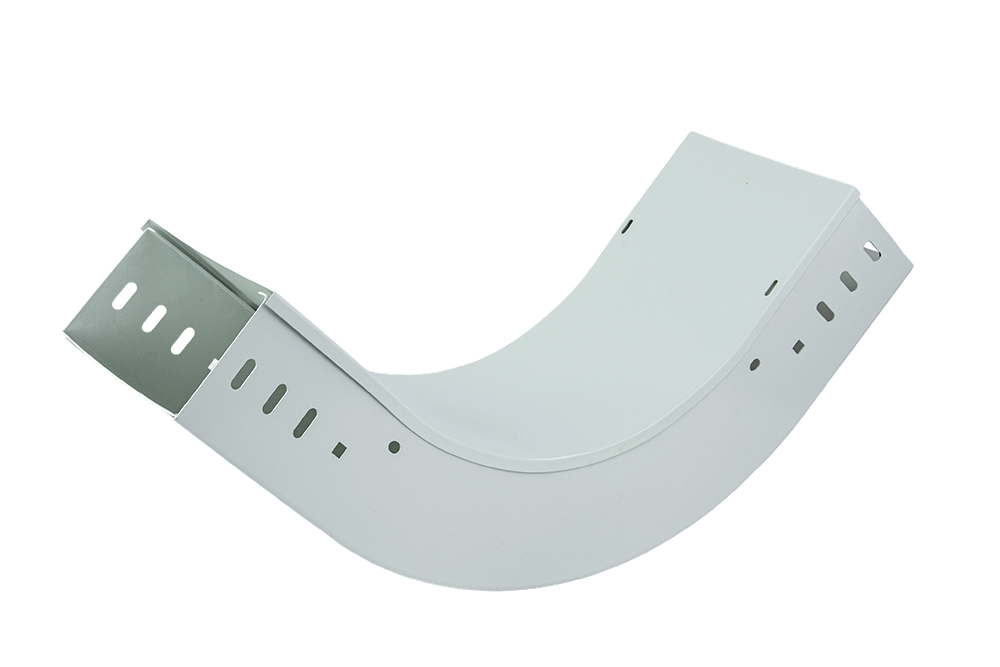

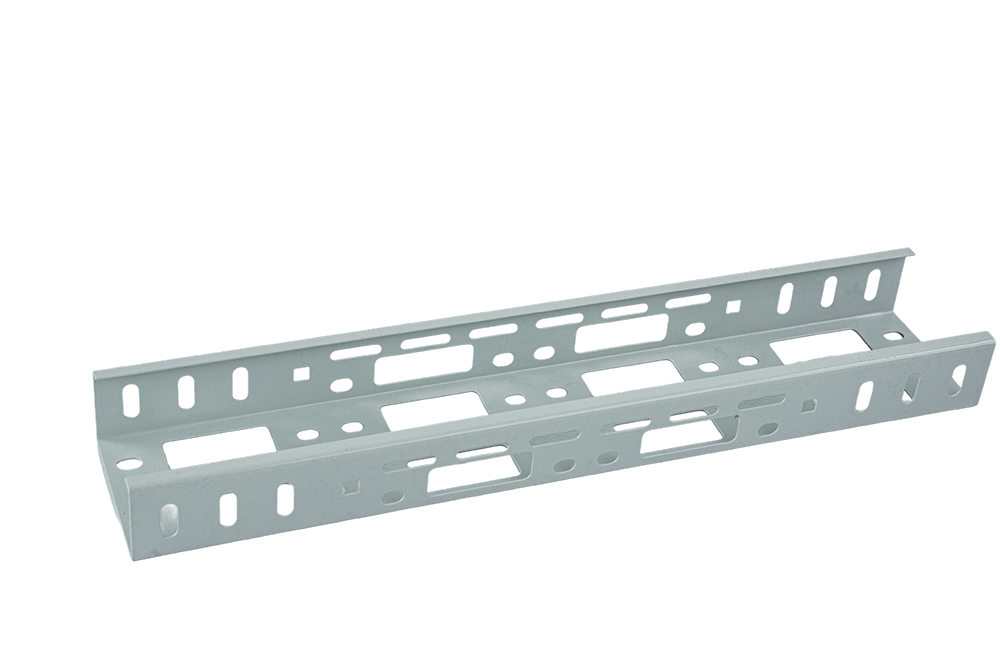

Powder Coated cable tray

Stainless steel cable tray:

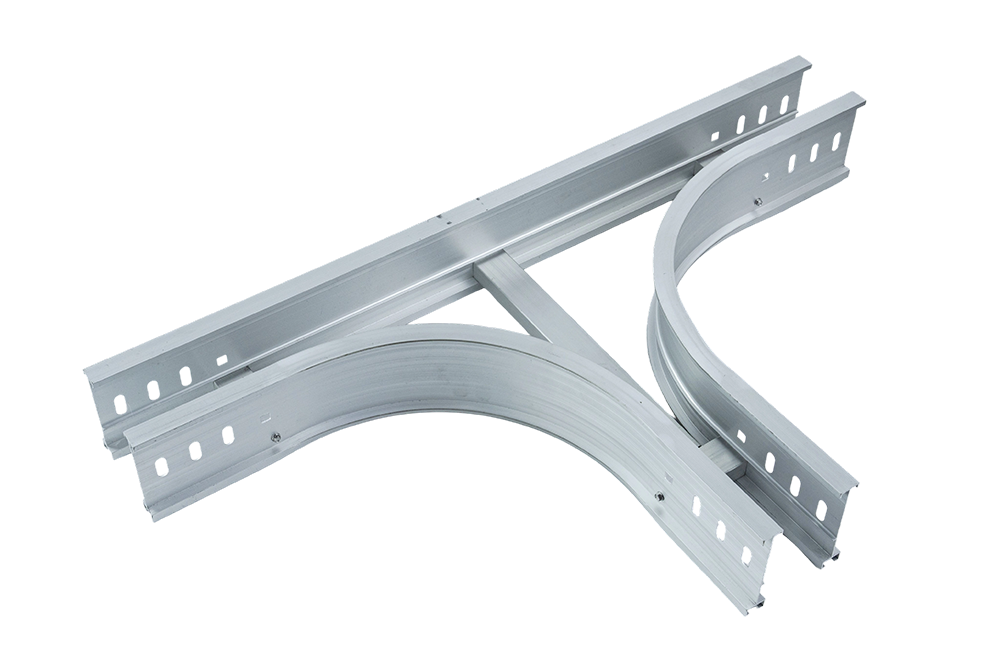

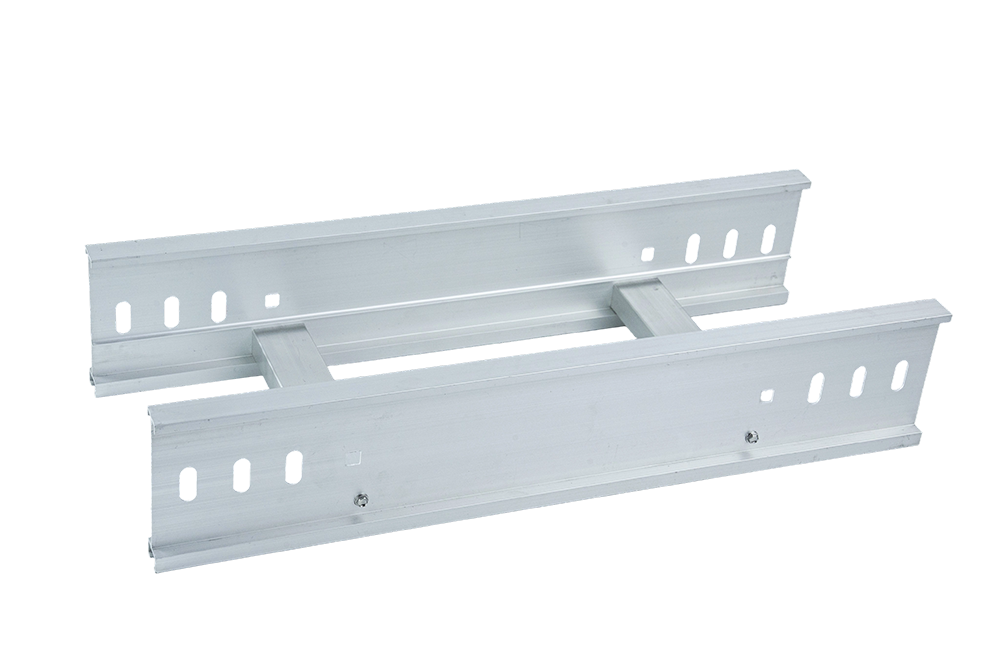

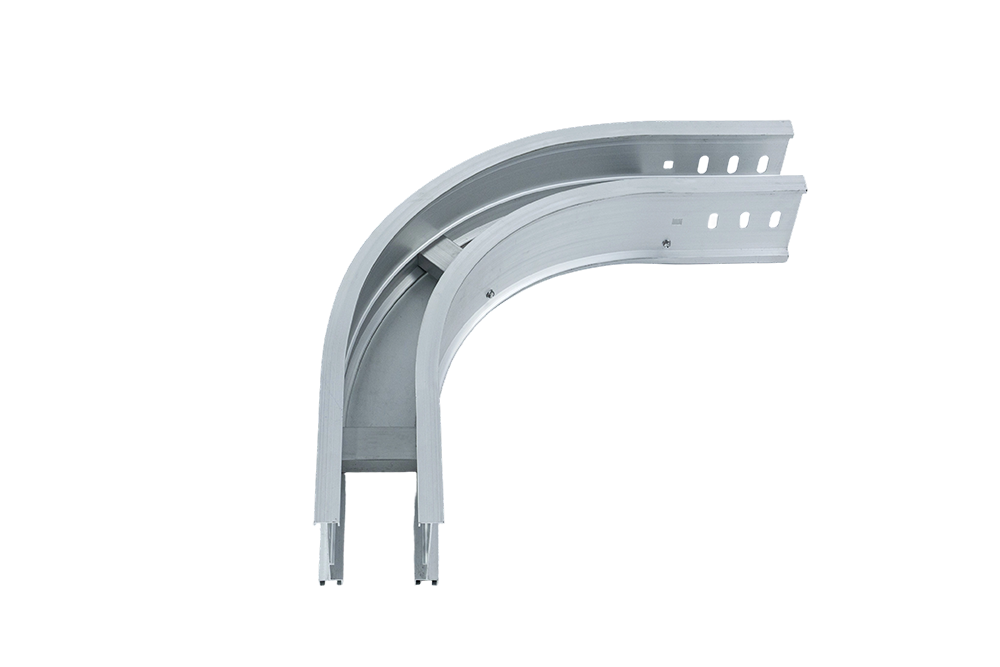

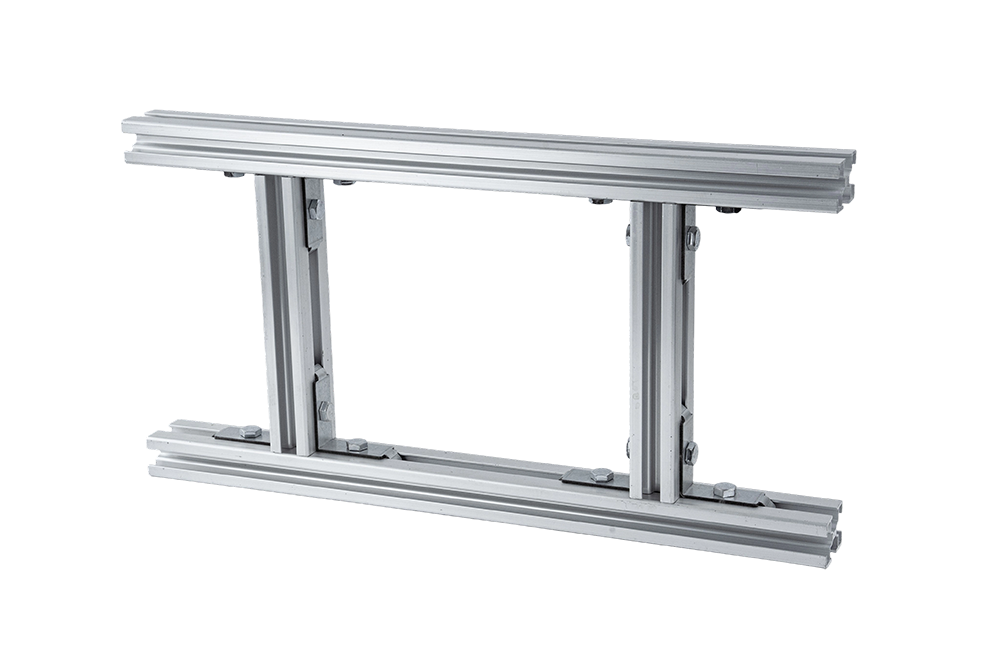

Aluminum cable tray：

Decision Tips:

- Budget <$6/m → Powder coating for non-corrosive zones.

- Coastal areas → Galvanizing + epoxy hybrid coating.

- FDA compliance → NSF-certified epoxy coatings.

3. Compliance & Quality Verification

a. Certifications to Demand:

- ISO 1461 (Hot-dip galvanizing standards)

- NACE/ASTM compliance reports for industrial coatings.

b. On-Site Inspection Checklist:

- Use Elcometer 456 coating thickness gauge (Target: 75-120μm).

- Check for uniformity via ASTM D3359 adhesion test.

4. Supplier Evaluation Criteria

a. Facility Audit:

- Ask for video proof of automated galvanizing lines (e.g., 10-ton crane-fed systems).

- Verify environmental permits (e.g., Zero hexavalent chromium discharge).

b. Case Studies:

- Request project references in similar industries (e.g., "Cable trays for Dubai Metro – 15-year warranty").

5. Sustainability & Innovations

a. Eco-Friendly Solutions:

- REACH-compliant coatings (VOC <50g/L).

- Recycled zinc sources (85%+ post-industrial content).

b. Emerging Technologies:

- Graphene-enhanced coatings (40% longer lifespan, +15% cost).

- IoT-enabled coating monitoring (Real-time corrosion tracking).

Summary: 4-Step Selection Workflow

1. Environment Analysis → 2. Coating Type Shortlist → 3. Certification Check → 4. Supplier Due Diligence
