Wave wire mesh cable tray/cureved side wire

Inquiry
PREV：Wire mesh cable trayNEXT：No next article
Product introduction

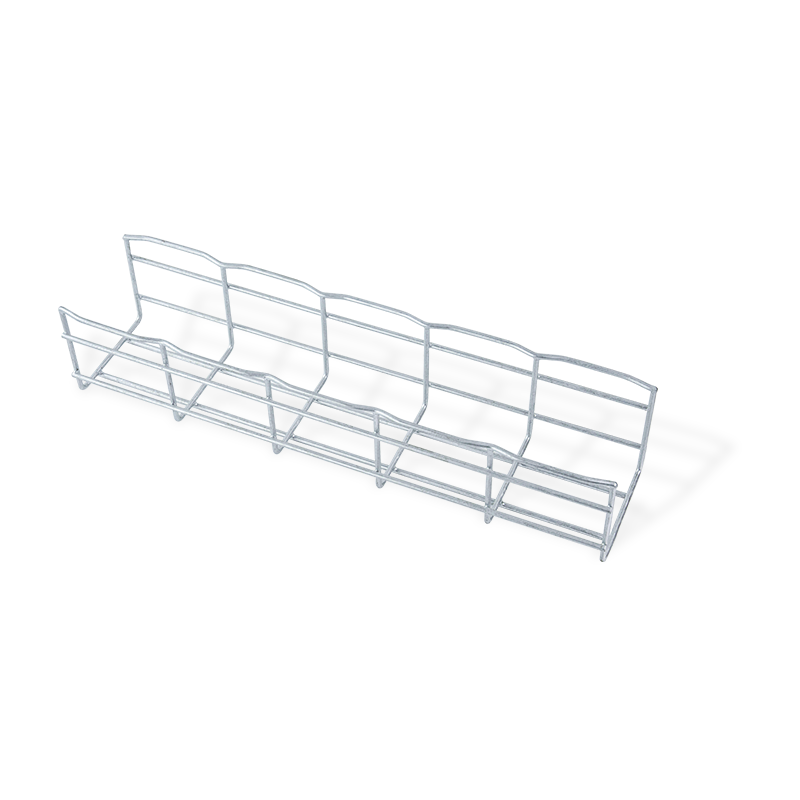

Wave Wire Mesh Cable Tray, with its unique wave-shaped design and load-bearing capacity, is widely used in various industrial and commercial places. It is carefully made of high-quality stainless steel (304 or 316L), ensuring its corrosion resistance and long service life.

In order to meet the needs of different customers and installation environments, we provide a variety of surface treatment options. Electro galvanizing (≥12um) gives the product good rust resistance and is suitable for general indoor environments; hot-dip galvanizing (＞60um) provides stronger anti-corrosion protection, especially suitable for humid or corrosive occasions; spraying (＞60um) uses high-quality powder coating, which is not only colorful, but also has good wear resistance and aesthetics, suitable for places with certain requirements for appearance. At the same time, we also provide polishing treatment to make the product surface smoother and brighter, and enhance the overall texture.

Wave Wire Mesh Cable Tray has become an ideal choice for ensuring cable safety and improving wiring efficiency with its sturdy structure, flexible installation methods and diverse surface treatment options. Whether it is power, communication or data center, we can provide you with professional and reliable cable management solutions.

Physical Properties
Type Wire type
Material Material 304：316L
Surface finishing/treatment

Pre-galvanized 8um

Electro zinc Plating（≥12um）

Hot -dip galvanized（＞60um）

Plastic-spayed（＞60um）

Power coating

Acid washing +polishing （option）
Dimension range customizable is available Width 50mm~1000mm
Side Rail Height 25mm-200mm
Length 300mm-6000mm
Thickness/wire diameter 3.5/4.0/4.0/6.0/8.0
Max. Working Load 100-400kg(100-400kgs upon size and thickness、Depends on the wire diameter)
Accessories/related products
Product features 1. The weight of wire mesh cable tray are 1/5 of traditional cable trays, making them easier to install.

2. The open design allows continuous airflow, which prevents overheating and build-up of dust and contaminants.

3. All kinds of elbows can be made at the project site flexibly.

4. Multiple finishes are available for indoor and out door applications.

5. Cable visibility allows for more convenient upgrading and maintenance. 6.Straight and wavy edges can be selected by customers.
Color Silver or others/according to customers
Enviroment demmand Indoor, outdoor, high corrosion occasions
Application Wire basket cable tray and cable tray accessories are widely used in many industries, such as data center, energy industry, food production line etc.
Fix a price Domestic price
Export price
MOQ 10m
Peer reference Peer name Ningbo Weicheng
Peer pricing 10 - 999 meters
$5.20
1000 - 9999 meters
$3.40
>= 10000 meters
$1.90
