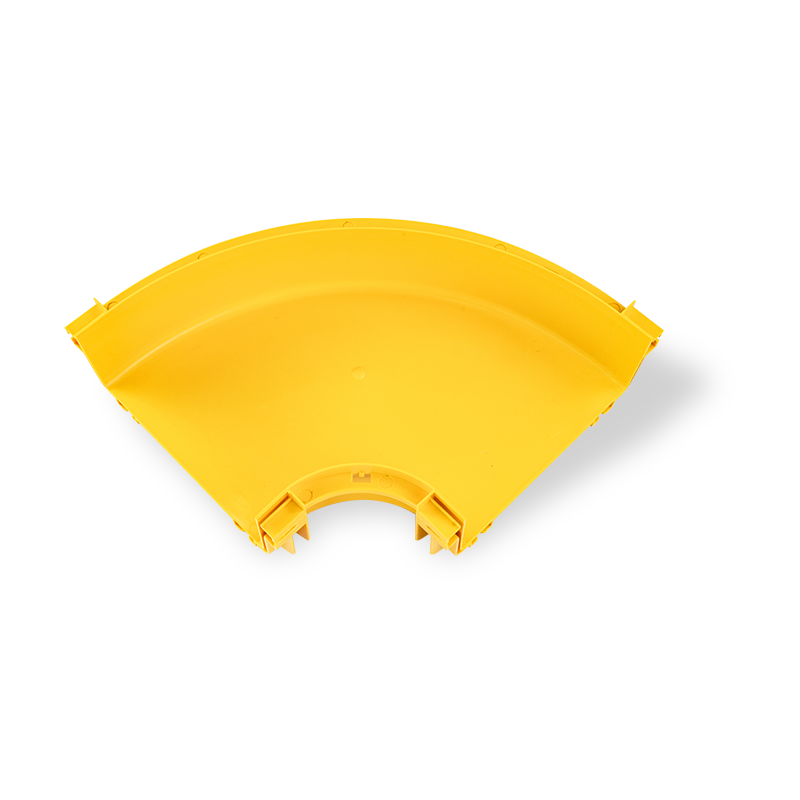

Fiber cable tray horizontal bend with connecter

Inquiry
PREV：Fiber cable tray horizontal tee with build-in connecterNEXT：Fiber cable tray horizontal bend
Product introduction

The horizontal bend assembly of the optical fiber trough is made of high-quality flame-retardant materials to ensure the safety and stability of the optical fiber line at the bend. The assembly design strictly follows the requirements of optical fiber transmission to ensure that the bending radius is not less than 40 mm, effectively reducing signal attenuation and improving transmission quality. The version with built-in connectors simplifies the installation process, improves work efficiency, and is suitable for rapid deployment scenarios; the version without connectors is more flexible and can be customized and installed according to actual needs to meet diverse wiring needs. Whether it is a new project or a renovation and upgrade, the horizontal bend assembly of the optical fiber trough can be perfectly integrated into the optical fiber line, providing all-round protection and support to ensure the stability and efficiency of the overall network performance.

Physical Properties
Type Fiber Cable Tray/Optic Cable Tray
Material Material flame-retardant PVC For Straight Section， flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Surface finishing/treatment

/

Dimension range

customizable is available

 Width 120/240/300/360
Side Rail Height 100
Length 2000/3000/Customized
Thickness/wire diameter
Max. Working Load
Accessories/related products
Product Features

1. Closed design, protect the fiber optic cables from damage.

2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance.

3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center.

4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.
Color Yellow(pantone 123c)
Enviroment demmand Indoor
Application Suitable for a wide range of applications, including fiber optic cable management, power cable management.
