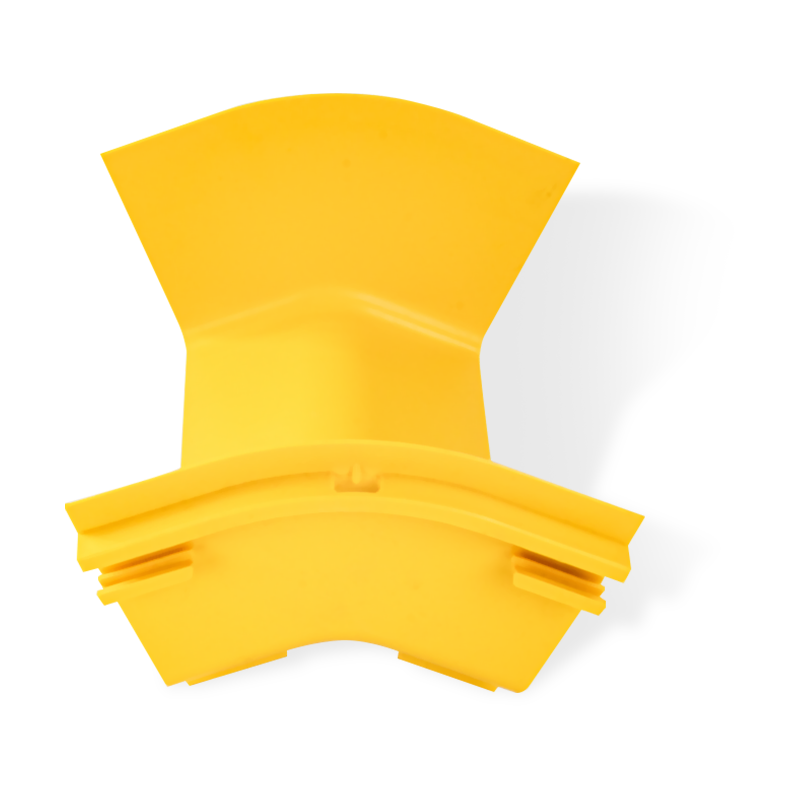

Fiber cable tray external riser 45 degrees

Inquiry

PREV：Fiber cable tray management drop NEXT：Fiber cable tray internal riser 45 degrees

Product introduction

The Fiber Cable Tray External Riser 45 Degrees is made of high-quality flame-retardant PVC material and is designed for the 45-degree downward turn of optical fiber lines in space. Its sturdy and durable structure, easy and quick installation, can effectively guide the optical fiber line to prevent the optical fiber from being squeezed or damaged during the turn. The smooth surface of the steering part ensures that the optical fiber maintains the performance when turning. The 45-degree downward bend design meets the fiber bending radius standard, reduces signal attenuation, and improves data transmission efficiency. Its flame retardant performance meets the UL94 FV-0 standard, is safe and reliable, and is suitable for various complex wiring environments.

Physical Properties

Type		Fiber Cable Tray/Optic Cable Tray
Material	Material	flame-retardant PVC For Straight Section， flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Material	Surface finishing/treatment	/
Dimension range customizable is available	Width	120/240/300/360
	Side Rail Height	100
	Length	2000/3000/Customized
	Thickness/wire diameter
	Max. Working Load
Accessories/related products
Product Features		1. Closed design, protect the fiber optic cables from damage. 2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance. 3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center. 4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.
Color		Yellow(pantone 123c)
Enviroment demmand		Indoor
Application		Suitable for a wide range of applications, including fiber optic cable management, power cable management.
