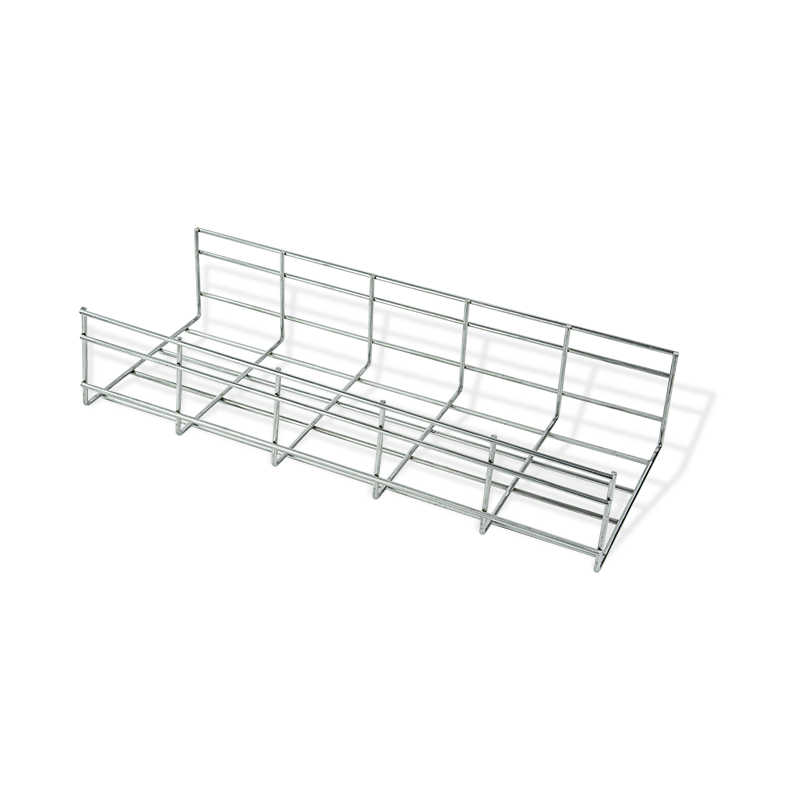

Wire mesh cable tray
Inquiry
Product introduction
The wire mesh cable tray is carefully crafted from high-quality stainless steel and is designed for modern cable management systems to ensure a sturdy and corrosion-resistant structure suitable for a variety of complex environments. To improve durability and aesthetics, we offer a variety of surface treatment options: electro galvanizing with a coating thickness of no less than 12 microns to provide basic rust protection; hot-dip galvanizing with a coating thickness of more than 60 microns, which greatly enhances corrosion resistance and is suitable for climate conditions; spraying and powder coating options, with a coating thickness of more than 60 microns, rich colors, easy to clean and maintain, and meet the decorative needs of specific environments. We also provide polishing services to further improve the surface finish and brightness of the product through electrolytic polishing technology.
The mesh cable tray has a strong workload capacity, ranging from 100 to 400 kilograms depending on the specific size and wire diameter, meeting the diverse needs of light to heavy cable laying. Its open design optimizes air circulation and effectively dissipates heat, while facilitating the installation, inspection and maintenance of cable lines. Whether it is a data center, industrial plant or commercial building, our mesh cable tray is an ideal choice for efficient and safe cable management.
Physical Properties
| Type | Wire type | |
| Material | Material | 304：316L |
| Surface finishing/treatment |
Pre-galvanized 8um Electro zinc Plating（≥12um） Hot -dip galvanized（＞60um） Plastic-spayed（＞60um） Power coating Acid washing +polishing （option） |
|
| Dimension range customizable is available | Width | 50mm~1000mm |
| Side Rail Height | 25mm-200mm | |
| Length | 300mm-6000mm | |
| Thickness/wire diameter | 3.5/4.0/4.0/6.0/8.0 | |
| Max. Working Load | 100-400kg(100-400kgs upon size and thickness、Depends on the wire diameter) | |
| Accessories/related products |  |
|
| Product features | 1. The weight of wire mesh cable tray are 1/5 of traditional cable trays, making them easier to install. 2. The open design allows continuous airflow, which prevents overheating and build-up of dust and contaminants. 3. All kinds of elbows can be made at the project site flexibly. 4. Multiple finishes are available for indoor and out door applications. 5. Cable visibility allows for more convenient upgrading and maintenance. 6.Straight and wavy edges can be selected by customers. |
|
| Color | Silver or others/according to customers | |
| Enviroment demmand | Indoor, outdoor, high corrosion occasions | |
| Application | Wire basket cable tray and cable tray accessories are widely used in many industries, such as data center, energy industry, food production line etc. | |
| Fix a price | Domestic price | |
| Export price | ||
| MOQ | 10m | |
| Peer reference | Peer name | Ningbo Weicheng |
| Peer pricing | 10 - 999 meters $5.20 1000 - 9999 meters $3.40 >= 10000 meters $1.90 |
|
